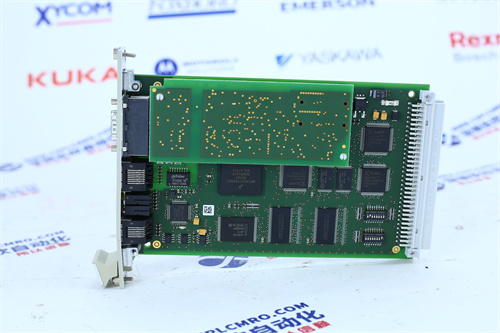

ABB UFC912A101 3BHE039426R0101
Product Description: The ABB UFC912A101 (part number 3BHE039426R0101) is a high-performance IGCT (Integrated Gate Commutated Thyristor) module designed for industrial power conversion systems. It functions as an External Output Interface (EOI) module, supporting high-performance data transmission and communication within industrial control systems. This module is engineered for demanding automation environments, offering reliable, efficient, and robust control for applications requiring precise current and voltage management. It facilitates seamless data exchange between control systems and field devices, ensuring accurate and efficient data processing for critical automation processes. It is well-suited for integration into ABB control systems.
Typical Product Parameters:
- Model Number: UF C912 A101
- Part Number: 3BHE039426R0101
- Technology: IGCT (Integrated Gate Commutated Thyristor)
- Operating Frequency: 50 Hz
- Current Rating: Up to 3000 A
- Voltage Rating: 690 VAC
- Switching Speed: Less than 5 µs
- Switching Capacitance: Less than 15 nF
- Insulation Resistance: ≥10 MΩ
- Power Supply: 24V DC (for the EOI functionality)
