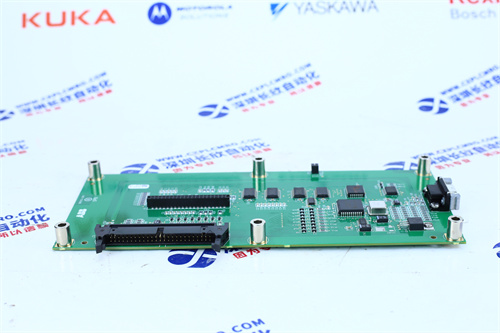

ABB PM511V16 3BSE011181R1
Product Description
The ABB PM511V16 3BSE011181R1 is a high – performance programmable logic controller module tailored for industrial automation applications. It serves as a central processing unit in various industrial control systems, ensuring reliable operation and precise control over industrial processes.
This module is designed to handle complex control tasks. It features a 32 – bit microprocessor that enables fast execution of control algorithms. With support for multiple programming languages, such as ladder diagram (LD), function block diagram (FBD), structured text (ST), and instruction list (IL), it offers flexibility for engineers to develop control programs according to specific requirements.
The PM511V16 3BSE011181R1 is equipped with a rich set of communication interfaces. It has an Ethernet port that supports 10/100Base – T, facilitating seamless connection to industrial networks. This allows for real – time data exchange, remote monitoring, and control. Additionally, it comes with an RS – 232 port and an RS – 485 port, which can be used to interface with legacy devices or other serial – based sensors and actuators.
In terms of memory, it has 8 Mbyte dynamic random – access memory (DRAM) with error – correcting code (ECC). The ECC feature ensures data integrity during operation, which is crucial in industrial applications where data accuracy is of utmost importance. It also supports flash memory cards of type II with a maximum capacity of 64 MB, providing additional storage for programs and data.
This module is widely used in diverse industries. In manufacturing, it can be used to control production lines, ensuring smooth and efficient operation. In power systems, it plays a role in process control and optimization, such as in power generation plants. In the chemical industry, it is suitable for controlling chemical processes. It also finds applications in transportation, food and pharmaceutical sectors (where it can be used for hygienic process connections following relevant standards), building automation, and automotive and aerospace industries for managing manufacturing processes.
Product Parameters
- Processor: 32 – bit microprocessor running at a speed suitable for handling industrial control tasks efficiently.
- Memory:
- 8 Mbyte dynamic RAM with ECC for data integrity during operation.
- Supports type II flash memory cards with a maximum capacity of 64 MB for additional storage.
- Communication Interfaces:
- Ethernet: 1 x 10/100Base – T port for high – speed network communication.
- RS – 232: 1 port for serial communication with legacy devices.
- RS – 485: 1 port for connecting to serial – based sensors and actuators.
- Power Supply:
- Input Voltage: 24 VDC.
- Power Consumption: 5W.
- Operating Temperature Range: – 20 °C to + 60 °C, suitable for a wide range of industrial environments.
- Certification: Complies with CE, UL, and RoHS standards, ensuring safety, reliability, and environmental compliance.
Product Specifications
- Model Number: PM511V16 3BSE011181R1
- Manufacturer: ABB
- Product Type: Programmable Logic Controller Module
- Dimensions: 150 mm x 100 mm x 40 mm, designed to fit standard industrial control cabinets.
- Weight: 0.76 kg, making it relatively lightweight for easy installation and handling.
- Mounting: Likely designed for DIN – rail mounting, a common and convenient mounting method in industrial control panels.
