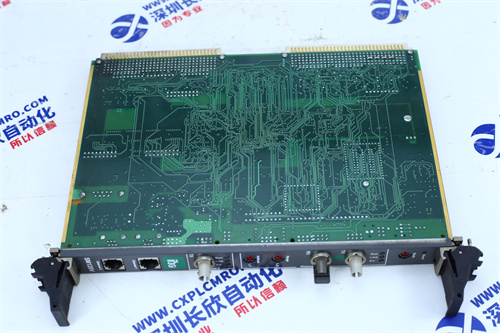

ELAU MAX-4/11/03/128/04/1/1/00
Product Description
The ELAU MAX – 4/11/03/128/04/1/1/00 is a servo drive that was part of the offerings by ELAU, which is now part of Schneider Electric. This servo drive is designed to play a crucial role in industrial motion control systems.
It is engineered to accurately control the speed, position, and torque of servo motors, enabling precise movement in various industrial applications such as manufacturing machinery, packaging equipment, and robotics. The drive belongs to the MAX – 4 series, which is known for its reliable performance in demanding industrial environments.
The MAX – 4/11/03/128/04/1/1/00 servo drive is likely to have been used in scenarios where high – precision motion control is required. For example, in a manufacturing line that assembles small components, it can ensure that robotic arms move with extreme accuracy to pick and place parts. It may also be used in packaging machines to control the speed and positioning of conveyor belts and packaging mechanisms, ensuring that products are packaged correctly and efficiently.
Product Parameters
- Series: MAX – 4
- Voltage Rating: Likely 24 VDC (as per similar models in the series, with the ’11’ in the model number potentially indicating this voltage)
- Current Rating: Approximately 3 A (the ’03’ in the model number may suggest this current capacity)
- Memory Capacity: 16 MB flash memory (the ‘128’ in the model number could correspond to this memory size)
- Ethernet Ports: 1 (the first ‘1’ after the memory size digit may indicate the number of Ethernet ports)
- Analog Inputs: 1 (the second ‘1’ may represent the number of analog inputs)
- Analog Outputs: 0 (the ‘0’ following the analog input digit indicates no analog outputs)
- Digital Inputs: 1 (the next ‘1’ may signify the number of digital inputs)
- Digital Outputs: 0 (the final ‘0’ indicates no digital outputs)
Product Specifications
- Model Number: MAX – 4/11/03/128/04/1/1/00
- Manufacturer: ELAU (now part of Schneider Electric)
- Module Type: Servo Drive
- Weight: Around 2.5 kg (as per some product listings related to the MAX – 4 series)
- Dimensions: Estimated dimensions based on similar products could be around 163 mm (length) × 38 mm (width) × 58 mm (height), but this may vary
